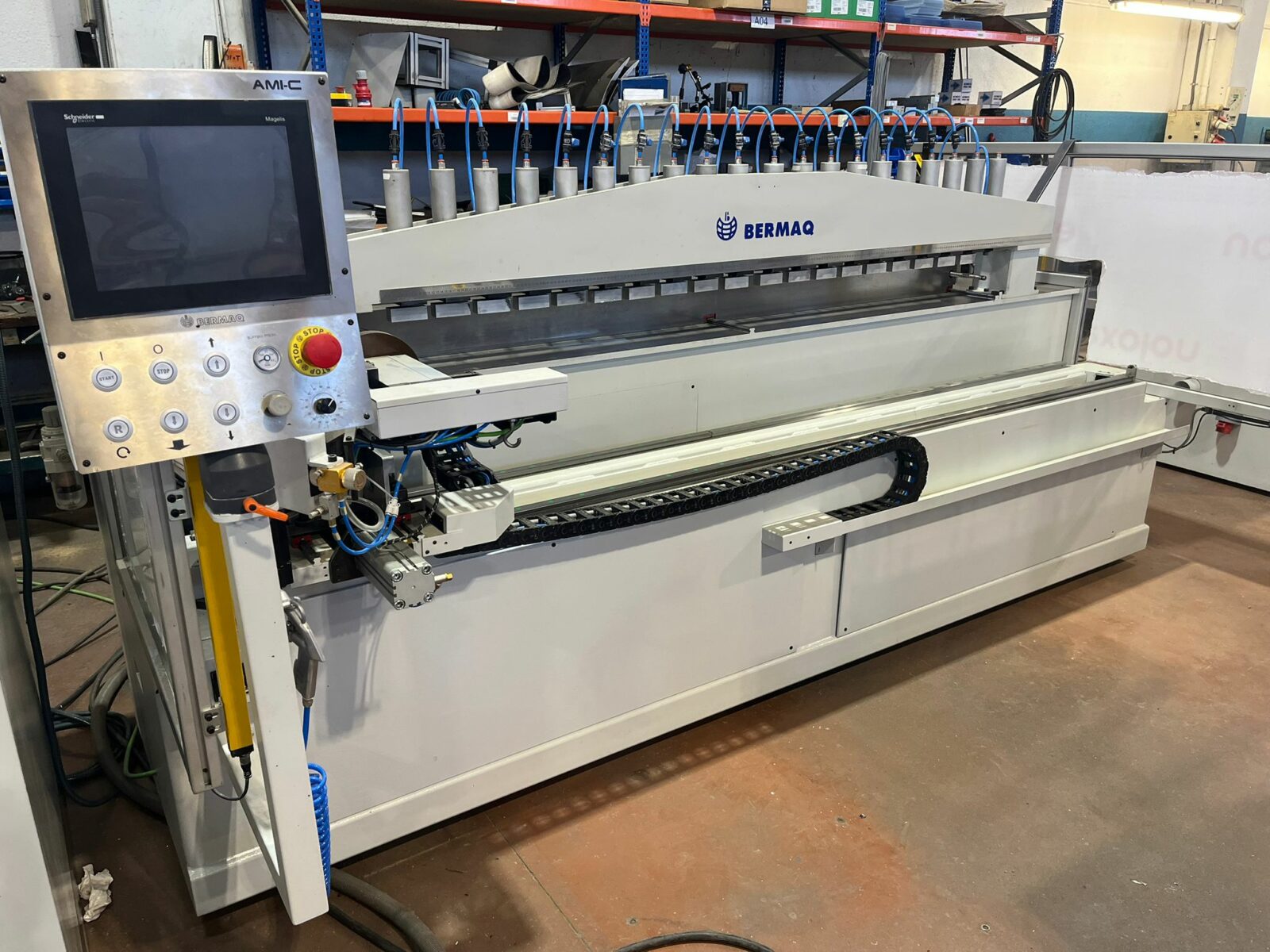

The AMI-CE polishing machine is capable of polishing acrylic plastic pieces and also non- ferrous materials using diamond tools.
The biggest difference from its predecessors is the improvement of the final quality, higher working speed and automation of the whole polishing process, saving time for the end user due to its software designed for maximum ease for the operator. In addition, the modular optional AMI-C allows the machine to be adapted to the needs of each client. Some of the innovations include:
- The buffing system: with this option, the customer looking for an unbeatable finish will get a fully finished piece without further polishing.
- Cutters included:
– EIMQ-131100-EU: Plate for 4 interchangeable tools
– EIMQ-131001-LA: PCD tool for pre-cutting (black)
– EIMQ-1310023-LA: PCD tool for clear finish (red)
– EIMQ-131023-EU: 2 counterweights per plate
Technical characteristics
- Dimensions: 2,100 mm
- Maximum thickness: 120 mm
- Maximum depth: 4,5 mm
- Milling RPM: 6.000 / 12.000 rpm
- Milling speed: 0 – 15 m/min
- Idle speed: 0 – 20m/min
- Air pressure: 6 bar
- Intake diameter: 80mm
- Number of standard clamps: 20 units
- Weight: 1.950kgs
- Milling angle: 90º
- Total power: 8,5 kW
- Workpiece length programmer (OFFSET)
- CE safety standard
- Touch screen type: LCD 10,4″ LCD
- Connection interface type: CANOpen
- Ground steel table
- Ground depth spindle
- Electronically adjustable depth accuracy: 0.013mm
- High precision guides
- Tool cabinet
- Stabilised structural steel bed
- Electronically adjustable paralex
